 SRA-4075  ASHLY

 4-Channel x 75w Amplifier


The Ashly SRA-Series of amplifiers incorporates switch-mode-power supplies and Class-D amplifier circuitry, providing an extremely power-efficient solution. Four models in each series are available in two and four channel configurations with power ratings of 75W and 150W per channel. Features include: convection cooling, extremely low noise, an internally switchable 120V/240V power supply, extensive protection circuitry, euroblock inputs and screw terminal outputs.



SRA-Series amplifiers are housed in a compact 1RU chassis weighing only 10 lbs. and are designed to drive four or eight ohm loads. Front panel features include: level attenuators for each channel, signal present and clip alert status LEDs for each channel. Rear panel features include: rear panel switches to select between two choices of input sensitivity, HPF frequencies and normal or bridged mode, remote power turn-on/off and adjustable turn-on delay up to eight seconds. Two-channel versions have a stereo headphone jack located on the front panel.



Features:

  • Convection cooling

  • Extremely low noise

  • Extensive protection circuitry

  • Level attenuators for each channel

  • Signal present and clip alert status LEDs

  • Selectable input sensitivity

  • Defeatable 80Hz HPF

  • Euroblock inputs/outputs

  • Stereo or bridged mode switch per channel pair

  • Remote stand-by control

  • Adjustable turn-on delay up to 8 seconds

  • Stereo headphone jack (on 2-channel models)

  • Safety/Compliance: cTUVus, CE, FCC, RoHS

Specifications:

  • Frequency Response (8 Ohms): 20Hz–20kHz, ±1.0dB

  • Distortion (SMPTE, typical): < 0.5% - 8 Ohm load, 10dB below rated power

  • Distortion (THD-N, typical): < 0.5% - 8 Ohm load, 10dB below rated power, 20Hz–20kHz

  • Damping Factor (8 Ohm load, < 1 kHz): > 200 into 8 Ohms

  • Input Impedance: 20k Ohms, Balanced

  • Input Sensitivity: 1dBu (75W), 4dBu (150W)

  • Gain: 26dBu, 36dBu, Selectable

  • Maximum Input Level: +21dBu

  • HPF: 80Hz 2nd Order, defeatable

  • Cooling: Convection

  • Output Circuitry: Class D

  • Amplifier/Load Protection: Output Overcurent, DC Output, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse

  • Environmental: 40-120° F, (4-49° C) noncondensing

  • Channels: 4

  • Signal to Noise (20Hz–20kHz, unweighted): >100dB

  • Dimensions (W x H x D): 19 x 1.75 x 11 in (483 x 45.5 x 279.4 mm)

  • Unit Weight: 9.4 lbs (4.27 kg)

  • Shipping Weight: 16lbs (8kg)

  • Power Req.: 120VAC, 240VAC ±10%, 50/60Hz (factory set)

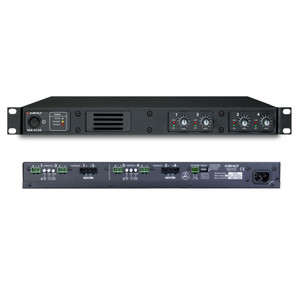

Front Panel

  • Controls: AC Power Switch, Level

  • Indicators (LED color): Power (Blue), Standby (Yellow), Protect (Red), Signal (Green), Clip (Red)

Rear Panel

  • Controls: 80Hz HPF, Gain/Sensitivity: +26dB, +36dB, Bridge/Stereo Switch, Remote Standby, Delay

  • Input Connector: 3-Pin Euroblock

  • Output Connector: Euroblock

  • Cordset: 3-Prong IEC

Power Per Channel, 20Hz–20KHz, 1% THD All Channels Driven

  • 4 Ohms: 75W

  • 8 Ohms: 40W

  • 8 Ohms (bridged): 150W

Line Current Draw All Channels Driven @ 4 Ohms

  • Standby Mode: 39mA

  • No Signal: 565mA

  • Typical (1/8 power poink noise): 1.25A

  • Max (1/3 power pink noise): 2.25A

Thermal Dissipation BTU/hr, All Channels Driven @ 4 Ohms

  • Standby Mode: 13

  • No Signal: 113

  • Typical (1/8 power poink noise): 145

  • Max (1/3 power pink noise): 150
