SE ELECTRONICS RN17 PAIR Matched Small Diaphragm Stereo Mics, Shockmount & Case

SE ELECTRONICS
SKU:
179860
|
UPC:
850426001774
$1,999.99
(No reviews yet)
Shipping:
Free Shipping
Current Stock:
Adding to cart… The item has been added

 RN17 PAIR  SE ELECTRONICS

 Matched Small Diaphragm Stereo Mics with Caps and Case


THE SMALL DIAPHRAGM

With a 15mm diaphragm (the world's smallest production gold-sputtered diaphragm), the transient response of the RN17 is unparalleled.

Such a small capsule reacts extremely quickly and is therefore adept at picking up the most delicate of high-frequency content.

However, a tiny diaphragm usually results in a lack of low-frequency response. How to counter this?

THE MASSIVE TRANSFORMER

Made obvious by the unusual chassis shape, the RN17's transformer is substantially larger than the norm. This full-scale transformer was custom-designed by Rupert Neve specifically for this microphone - and nobody has been designing audio transformers longer (or better) than Rupert Neve.

With an audio transformer of this magnitude, the RN17 is able to put out astonishing clarity across ALL frequencies - not just the highs. The midrange is detailed and forward, the lows are full and accurate, and the whole microphone has a balance and headroom never before achieved with a small-capsule microphone.

MATTE BLACK FINISH

The matte black finish minimizes the level of visual attention drawn to the microphone when used on stage or in the studio, allowing it to blend into the background.

ADDITIONAL CAPSULES

The RN17 ships standard with a cardioid capsule, but Supercardioid, Omni, Hypercardioid and Figure 8 capsules are available for purchase separately.

CUSTOM SHOCK MOUNT

Every RN17 includes a custom-designed, sturdy, protective, and easy-to-use shock mount, which is essential to reducing the unwanted effects of vibration or knocks to the supporting microphone stand.

When purchased as a pair, the transformers and cardioid capsules are factory-matched for perfect tolerance, guaranteeing the best possible stereo image.

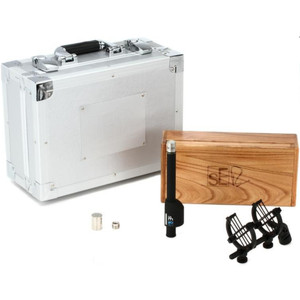

This configuration also includes a precision stereo mounting bar, two shock mounts, a wooden presentation case, and empty canisters for future capsule additions. The whole setup comes packaged inside a secure flight case.

OMNIDIRECTIONAL CAPSULES

Especially when used with an RN17 Stereo Pair, these omnidirectional capsules can be used to capture amazing room effects for drums, pianos, and orchestras. Available separately in singles or pairs.

Specifications:

  • Capsule Type: Hand-Crafted True Condenser

  • Diaphragm: 17.2mm Gold/Mylar

  • Directional Pattern: Cardioid

  • Frequency range: 20 Hz - 20 kHz

  • Impedance: 200 Ohms

  • Sensitivity: 5.96 mV/Pa (-44.5dB)

  • Sensitivity (Figure-8): 2.51 mV/Pa (-52dB)

  • Max SPL: 131 dB (0.5% THD @ 1kHz)

  • Signal to Noise Ratio: 76 dB

  • Self-Noise: 18 dB(A) (cardioid), 15 dB(A) (omni)

  • Matching Connectors: XLR3F

  • Power requirement: 48V phantom

  • Weight: 320g / 11.32oz

  • Diameter: 44 mm (transformer), 17mm (capsule)

  • Length: 200 mm

  • Stereo Bar

  • Weight: 245 g / 8.64 oz

  • Dimensions: 300 x 25 mm

  • Max. width between mic mounts: 276 mm

  • Min. width between mic mounts: 58 mm

SALE: $2399.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
