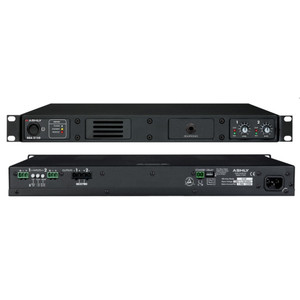

Ashly SRA-4150 4 Channel x 150w Install Power Amplifier

 SRA-4150  ASHLY

 4-Channel x 150w Amplifier

SRA Series Amplifiers are advanced, efficient single-space amplifiers perfect for installations with modest power requirements. The SRA Series makes it a snap to get exactly what you need and nothing you don’t.


Housed in a compact single rack space chassis and weighing only 10 lbs, SRA Series Amplifiers are designed to drive 4 or 8 Ohm loads. The 150W models are capable of driving 25V constant voltage lines directly. Switch mode power supplies and Class-D amplifier circuitry provide an extremely power efficient solution. They are convection cooled, so little maintenance is needed after the installation, and no annoying fan noise. Of course, you get the reliability, superior sonic quality and rugged construction you’ve come to expect from Ashly.

Features:

• Convection cooling

• Extremely low noise

• Extensive protection circuitry

• Level attenuators for each channel

• Signal present and clip alert status LEDs

• Selectable input sensitivity

• Defeatable 80Hz HPF

• Euroblock inputs/outputs

• Stereo or bridged mode switch per channel pair

• Remote stand-by control

• Adjustable turn-on delay up to 8 seconds

• Stereo headphone jack (on 2-channel models)

• Safety/Compliance: cTUVus, CE, FCC, RoHS

Specifications:

• Notes: OdBu = 0.775 VRMS

• Frequency Response (8 Ohms): 20Hz-20kHz,il.OdB

• Distortion (SMPTE, typical): < 0.5%-8 Ohm load, lOdB below rated power

• Distortion (THD-N, typical): < 0.5% -8 Ohm load, lOdB below rated power, 20Hz-20kHz

• Damping Factor (8 Ohm load, < 1 kHz): > 200 into 8 Ohms

• Input Impedance: 20k Ohms, Balanced

• Input Sensitivity: ldBu(75W),4dBu(150W)

• Gain: 26dBu, 36dBu, Selectable

• Maximum Input Level: +21dBu

• HPF: 80Hz 2* Order, defeatable

• Cooling: Convection

• Output Circuitry: Class D

• Amplifier/Load Protection: Output Overcurent, DC Output, Main Supply Rail Over voltage, Chassis Temperature, Inrush Limiting, Mains Fuse

• Environmental: 40-120° F, (449° C) non-condensing

• Controls: AC Power Switch, Level

• Indicators (LEO color): Power (Blue), Standby (Yellow), Protect (Red), Signal (Green), Clip (Red)

• 80Hz HPF, Gain/Sensitivity: +26dB, +36dB, Bridge/Stereo Switch, Remote Standby, Delay

• Connectors (each channel): Input: 3-Pin Euroblock Output: Euroblock

• Cordset: 3-PronglEC

• Power Requirements: 120VAC, 240VAC ±10%, 50/60Hz (factory set)

• Dimensions: 19"W x 1.75'H x 11" D (483mm x 45.5mm x 279.4mm)

• Weight: 16lbs

SALE: $1049.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
