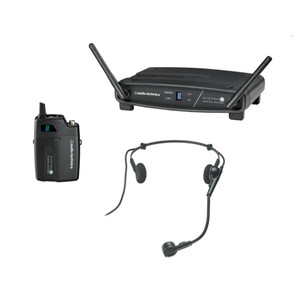

AUDIO TECHNICA ATW-1101/G Series 10 Digital 2.4 Ghz Wireless Guitar System

 ATW-1101/G  AUDIO TECHNICA

 Series 10 Digital 2.4GHz Guitar Wireless System

Audio-Technica's ATW-1101/G System 10 digital high-fidelity wireless system is designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

Includes:

• ATW-R1100 receiver

• ATW-T1001 UniPak® transmitter

• AT-GcW guitar/instrument input cable

Features:

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

• 2.4 GHz range – completely free from TV interference

• Three levels of diversity assurance: frequency, time, & space

• Automatic frequency selection for seamless, interference-free operation

• Extremely easy operation with instantaneous channel selection, sync, and set-up

• State-of-the-art digital receiver for reliable performance

• Balanced XLR and unbalanced 1/4” output jacks with level control

Specifications:

• Operating Frequencies: 2.4 GHz ISM band

• Dynamic Range: >109 dB (A-weighted), typical

• Total Harmonic Distortion: <0.05% typical

• Operating Range: 30 m (100') typical

• Open range environment with no interfering signals

• Operating Temperature Range: 0° C to +40° C (32° F to 104°F)

• Battery performance may be reduced at very low temperatures

• Frequency Response: 20 Hz to 20 kHz:

• Depending on microphone type

• Audio Sampling: 24-bit / 48 kHz

ATW-R110 Receiver

• Receiving System: Diversity (frequency/time/space)

• XLR, balanced: 0 dBV

• 1/4" (6.3 mm), unbalanced: +6 dBV

• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply

• Dimensions (WxHxD): 7.48" x 1.82" x 5.06" (190 x 46.2 x 128.5 mm)

• Net Weight: 290 g (10.2 oz.)

ATW-T1001 UniPak® Transmitter

• RF Output Power: 10 mW

• Spurious Emissions: Following federal and national regulations

• Four-pin Locking Connector

• Pin 1: GND

• Pin 2: INST INPUT

• Pin 3: MIC INPUT

• Pin 4: DC BIAS +9V

• Batteries (not included): Two 1.5V AA

• Battery Life: >7 hours (alkaline

• Depending on battery type and use pattern

• Dimensions (WxHxD): 2.76" x 4.21" x 0.98" (70.2 x 107 mm x 24.9 mm)

• Net Weight (without batteries): 100 g (3.5 oz)

SALE: $349.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
