AVID MTRX Pro Tools Multi-Format I/O Interface Base Unit

 MTRX  AVID

 Pro Tools Multi-Format I/O Interface

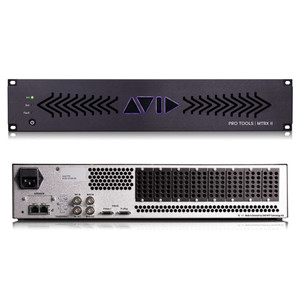

 AD and DA Modules in Rear Image NOT INCLUDED!

The MTRX solves a major problem in pro audio: syncing digital and analog formats to work seamlessly together. The unit delivers pristine sound quality with extensive monitoring and routing capabilities in a versatile audio interface for Pro Tools HDX, HD Native, and other pro audio applications. With MTRX, you gain the superior sonic quality of Digital Audio Denmark’s (DAD’s) legendary analog-to-digital converters, plus flexible routing and monitor control when used as a standalone device or with Avid Pro Mixing surfaces. And because the interface can be customized with all the analog and digital I/O you need, you can take on the most demanding music and post-production challenges. Effortlessly.

Achieve Exceptional Sound

Digital Audio Denmark’s AD and DA converters are renowned for delivering the cleanest, most transparent, and highly detailed sound. By incorporating these converters, Pro Tools | MTRX enables you to get the best sound quality possible from your Pro Tools | HD system—up to 384 kHz DSD. And because it does double duty as both an audio I/O and monitor interface, it offers exceptional versatility too.

Expand Your Monitor Control

Take full remote control of all sources, monitors, and speaker sets directly from Pro Tools. Pro Tools | MTRX includes Pro | Mon 2, putting complete monitoring, talkback, summing, and fold-down control at your fingertips, whether you’re mixing in mono, stereo, 5.1, 7.1, 9.1, or even a 64-channel immersive audio mix.

Get the I/O You Need

Pro Tools | MTRX is fully modular, so you can customize it with a wide variety of I/O and interface options. From analog inputs, outputs, and high-quality mic pres, to Dante, MADI, AES3, 3G-SDI, and more, you have the interface versatility you need to connect with any type of gear and route any signal between the various I/O formats.

Route Audio with Abandon

Using DADman software, you can route, split, and patch audio quickly, flexibly, and extensively, with a matrix capacity of up to 1,500 x 1,500 cross points. You can feed any input to any output, or even send audio to multiple outputs simultaneously, giving you unlimited workflow possibilities.

Features:

• AES/EBU I/O: Eight AES pairs (16 mono) via two D25 connectors

• MADI I/O: Coaxial interface with 64 I/O channels via BNC connectors

• Option card slots: Eight available for I/O customization

• System sync: Word Clock/video black burst (VBB) I/O via BNC connectors; AES11 input

• Pro Tools interface: Two 32-channel DigiLink Mini connectors (64 channels total)

• Sample rate Supports: 44.1 kHz–384 kHz, as well as DSD 64/DSD 128 with high precision internal clock and PLL

• Power: Dual power supplies (internal)

• Chassis: 2U 19-inch rack-mountable unit (482.6 mm)

SALE: $5599.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
