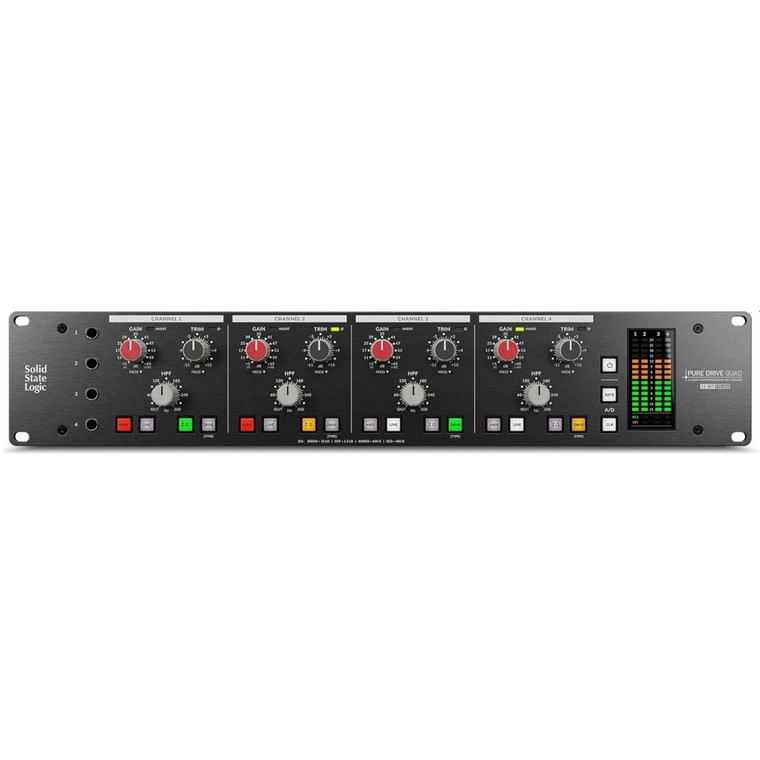

SOLID STATE LOGIC PURE DRIVE QUAD 4 Channel SuperAnaloque Rackmount Microphone Preamp

 PURE DRIVE QUAD  SOLID STATE LOGIC

 4 Channel SuperAnaloque Rackmount Microphone Preamp


The Solid State Logic PureDrive QUAD is a four-channel outboard version of the SuperAnalogue PureDrive microphone preamp initially showcased in Solid State Logic's ORIGIN console. This unit not only faithfully translates the original preamp’s clarity and unique drive profile, but it also offers additional drive profiles and enhanced connectivity options for maximum versatility.

FROM HUMBLE ORIGINS

With both lifelike cleans and harmonically rich drive tones for a wide range of sounds, the PureDrive preamp left an immediate impression when it first appeared in the SSL ORIGIN. The Pure Drive QUAD lets the preamp shine as its own unit, featuring four mic channels equipped with sweepable Gain, Trim, and HPF controls; independent 48V phantom power; polarity inversion; and four input impedance options.

PRISTINE CLEANS AND EXPRESSIVE DRIVE TONES

Explore a myriad of tonal possibilities using the SSL Pure Drive QUAD’s three distinct drive settings. Clean mode captures your source with lifelike clarity and an ultra-low noise floor, while Classic Drive mode adds the analog warmth and distinct odd harmonics heard on the original preamp’s drive channel. Finally, Asymmetric Drive mode is a new tonal variation designed specifically for the Pure Drive QUAD, emphasizing even harmonics in your signal for a smoother and fuller drive sound.

NUMEROUS CONNECTIVITY OPTIONS

The Pure Drive QUAD supports a world of recording possibilities thanks to its comprehensive selection of I/O options. The unit’s rear-mounted combo XLR inputs, front-panel Hi-Z/DI instrument inputs, and D-sub connectors for line-level inputs have all of your analog needs covered, while the integrated USB sound card, AES/EBU output pairs, ADAT out, and auto-ranging word clock ensure top-quality digital connections and expansions.

BUILT TO LAST, READY FOR ANYTHING

Whether you need uncompromised clarity or good-old-fashioned dirt, the Solid State Logic Pure Drive QUAD is built to deliver for years to come. Check it out today and experience the unparalleled sonic possibilities for yourself.

Features:

• 4-channel high-performance PureDrive mic preamps

• +48 V phantom power, polarity invert and 3rd order hi-pass filter

• Stepped Gain control up to +65 dB gain

• 31-step Trim control, with precise 1 dB increments – overdrive the signal with the Gain control and then reduce to a suitable level using Trim

• 3 modes for each preamp: Clean, Classic Drive and Asymmetric Drive

• Mic/Line input switching

• Mic via XLR

• Line via choice of TRS jack or dedicated D-Sub connectivity

• 4x front panel Hi-Z/DI instrument unbalanced inputs with automatic input detection

• 4 mic preamp input impedance options – explore new tonal possibilities from your dynamic and ribbon microphones

• Balanced analog outputs/insert sends for external processing

• +24 dBu professional line level insert returns/ADC inputs

• Analog to digital connectivity via ADAT, AES and USB

• Ability to switch ADAT and AES connections to source audio from DAW outputs (USB) instead of the A/D converter

• Cascade 2 PURE DRIVE QUAD units via convenient ADAT LINK IN connection

• USB soundcard mode

• 12-in/12-out (@44.1/48 kHz)

• 4 analog + 8 x ADAT in (via Link in)/4 AES + 8 ADAT outs

• Stepped pots and digitally controlled analogue electronics for precision, stereo matching and ease of recall

• Up to 192 kHz and 32-bit conversion, professional I/O levels (+24 dBu = 0 dBFS)

• Selectable Auto-Sleep mode

• Auto-ranging Wordclock In and Out

SALE: $1699.99

FREE S&H in continental US (e-mail for international /offshore USA rates)
