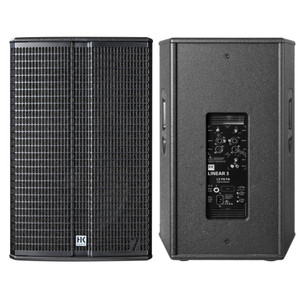

HK AUDIO LINEAR 3 112 FA 2400W Total Active PA System Speaker Pair

HK AUDIO
SKU:
179843
|
UPC:
4039373021196
$1,839.99
(No reviews yet)
Shipping:
Free Shipping
Current Stock:
Adding to cart… The item has been added

 LINEAR 3 112 FA  HK AUDIO

 2400w Total Active PA System Speaker Pair



This active 12”/1” fullrange mid/high unit delivers 1,200 watts of class D power, and functions either as a standalone speaker or in combination with subwoofers from the LINEAR SUB series. Four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – allow the LINEAR 3 112 FA to deliver outstanding performance and easy handling in any situation.



Features:

  • Packs the muscular bi-amped punch of a 1,200 W class D power amp

  • Beautifully balanced, high-definition audio

  • 135 dB SPL—that's plenty of sound pressure for audiences of up to 500 (with the suitable L SUB 1500 A or L SUB 1800 A subwoofers)

  • No need for sophisticated audio skills: advanced DSP technology serves up top-notch sound every time

  • Intelligent Multiband Limiter ensures tonal integrity at every volume level

  • FIR crossover filtering for transparent midrange

  • Plenty of sound-shaping options with four EQ presets—Bass Boost, Flat (LF), Flat (MHF) and Contour

  • Very low total harmonic distortion, so no listening fatigue

  • System”s sound is easy to control and shape, even from the stage

  • On-target, directional PA aiming to reduce reflections off walls and ceilings

Specifications:

  • Max SPL peak: 135 dB half space (@ 10% THD)

  • Frequency response +/- 3 dB: 65 Hz – 18 kHz

  • Frequency response -10 dB: 58 Hz – 18 kHz

  • Power Rating: 1200 W

  • Amplifier: Class D - bi-amped

  • Active protection circuits: Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters

  • Low/Mid Speaker: 1x 12"

  • HF Driver: 1"

  • Horn characteristics: 90° x 55° CD horn

  • Cut-off Frequency active: 2.3 kHz FIR X-Over with 72 dB/oct.

  • Connections: 2x XLR Combo In bal., 1x Stereo RCA In, 2 x XLR Thru bal., 1x XLR Mix Out

  • Input Sensitivity: +4 dBu @ Gain center-notched

  • Sensitivity switch: Line/Mic Input A

  • Equalizer: 2 EQ switches: Bass Boost/Flat & Flat/Contour

  • Pole mount: HK Audio DuoTilt 3/7

  • Rigging points: 4x M8

  • Handles: 2x HK Audio MultiGrip

  • Enclosure: 16 mm MDF

  • Grille: 2 mm metal grille backed with black acoustic foam

  • Finish: Acrylic enamel, black

  • Optional accessories: Cover, Stereo Pole Add-on M20, Speaker Stand Add-on, Tilt bracket (TB-N, TB-NQ), Attachment point (AP-8), Tilt-Unit

  • Dimensions (WxHxD): 36 x 66 x 36,7 cm

  • Weight: 21,5 kg / 47,4 lbs
