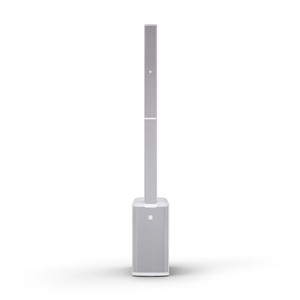

LD SYSTEMS MAUI 11 G3 3-Way 1460w Peak Linear Array Bluetooth PA System

 MAUI 11 G3  LD SYSTEMS

 3-Way 1460w Peak Linear Array Bluetooth PA System

With 730 watts of onboard power, a dual 8" ported subwoofer, and a highly portable design, the MAUI 11 G3 fills any space with impressive full-range audio that won't weigh you down. Comfortable as a concert PA, the versatile G3 is also ideal for mobile DJs or use as a PA at corporate events, weddings, and more. Two tweeters, 6 midrange drivers, and a pair of 8" sub speakers provide balanced full-range audio to all areas of the room thanks to a consistent dispersion design. The tweeters feature curved waveguides that distribute the high-frequency material evenly, resulting in high intelligibility across the entire listening area. A dual-driver four-port design allows the MAUI 11 G3 to produce incredibly tight, focused low end down to 39Hz from its subwoofer. When paired with an additional G3 sub (sold separately) you can increase the low end by up to 6dB and run the pair in a cardioid configuration to reduce feedback and eliminate bass pooling on stage for a cleaner sound. And at the end of the show, the MAUI 11 G3's lightweight, modular design breaks down quickly for easy transport. Fill the room, deliver your message, leave without a trace. The MAUI 11 G3.

LD Systems MAUI11G3 Features:

• 1460 W Peak-power and 125 dB max. SPL

• Powerful bass reproduction with 2 x 8" subwoofer

• Balanced mids thanks to 6 x 3.5" full-range speakers

• Precise and silky highs with 2 x 1" high-frequency drivers

• Cardioid column for controlled low-mid and midrange sound dispersion

• BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion

• Optimised bass-reflex design improves bass response and reduces air flow noise

• Can be combined with an additional MAUI® 11 G3 subwoofer for increased low end or for cardioid subwoofer setups

• Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume

• AAC coding for HD Bluetooth® 5.0 streaming

• Automatic setup detection for quick and easy operation

• Fast and simple assembly without stands or cables

• Rugged birch plywood subwoofer housing with durable polyurea-coating

• Lightweight, powder-coated aluminium column housing

LD Systems MAUI11G3 Specifications:

General

• Product type: PA Complete Systems

• Type: Powered

• Color: Black

• Max. SPL (Peak): 125 dB

• Frequency response (-10dB): 39 Hz - 20000 Hz

• Dispersion (H x V): 120° x 30 °

• Total Height: 2052 mm

• Weight: 30,7 kg

Subwoofer

• Woofer dimensions: 2 x 8 "

• Woofer dimensions (mm): 2 x 203 mm

• Woofer magnet: Ferrite

• Woofer brand: Custom-made

• Woofer voice coil: 2 "

• Woofer voice coil (mm): 50.8 mm

• Cabinet construction: Bass Reflex

• Housing material: 15 mm Birch Plywood

• Cabinet surface: Polyurea

• Dimensions Subwoofer (W x H x D): 305 x 607 x 403 mm

• Subwoofer weight: 20.5 kg

Mid/Hi System

• Midrange dimensions: 6 x 3.5 "

• Midrange dimensions (mm): 6 x 89 mm

• Midrange magnet: Ferrite

• Midrange brand: Custom-made

• Midrange voice coil: 0.75 "

• Midrange voice coil: 19 mm

• Tweeter dimensions: 2 x 1 "

• Tweeter dimensions (mm): 2 x 25.4 mm

• Tweeter magnet: Neodymium

• Tweeter brand: Custom-made

• Tweeter voice coil: 1 "

• Tweeter voice coil (mm): 25.4 mm

• Wave Guide: CD Waveguide

Loudspeaker inputs: 1

• Speaker input connections: Custom-made multipin

• Cabinet construction mid/high: Passive Cardioid

• Mid/Hi system cabinet material: Aluminium

• Mid/Hi system cabinet surface: Powder-coated

• Mid/Hi system width: 103 mm

• Mid/Hi system height: 1460 mm

• Mid/Hi system depth: 135 mm

• Mid/Hi system weight: 10.2 kg

Amplifier module (integrated in subwoofer)

• Amplifier: Class D

• System output (RMS): 730 W

• System output (Peak): 1460 W

• Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection

• Cooling: Convection

• Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level

• Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode

• Mains connector: IEC power cable (included)

• Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz

• Fuse: T 3.15AL / 250 V

• Power consumption: 300 W

• Ambient temperature (operating): 0 - 40 °C

• Relative Humidity: < 80% (non-condensing)

• Line Inputs: 2

• Line Input Connectors: Combo XLR / TRS

• Line Outputs: 1 x Sub OUT, 2 x THRU

• Line Output Connectors: XLR male

• Number of speaker outputs: 1

• Loudspeaker Output Connectors: Custom-made multipin

• Bluetooth Standard: A2DP

• Bluetooth Audio Decoder: AAC, SBC

• DSP characteristics: Bit depth AD/DA converter: 24 bit / Sampling frequency: 48 kHz

SALE: $1499.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
