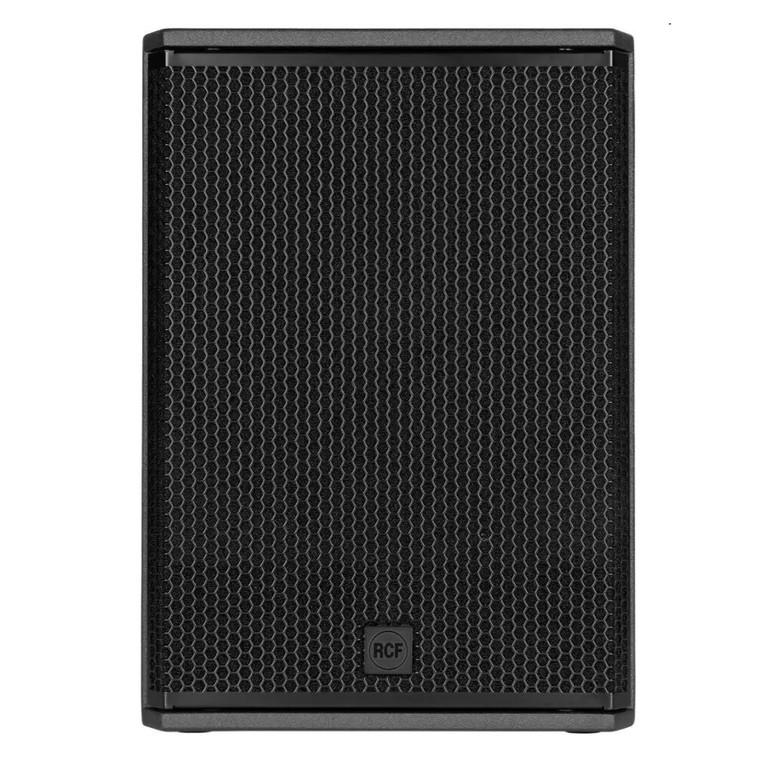

SUB 702-AS MK3 RCF
Active 1400w Peak 12" Sub-Woofer
The SUB 702-AS mk3 is a portable 12" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 702-AS MK3 is perfect for small to mid-sized venues and portable applications.
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications. RCF's improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.
Features:
-
1400 Watt Digital Amplifier
-
12" Woofer, bass reflex housing
-
Stereo crossover
-
Switchable crossover frequencies
-
Phase-reverse switch
-
Electronic equalization, soft limiter and protection
-
Stereo XLR input, Stereo XLR signal output
Specifications:
-
Frequency Response -3 dB: 40 Hz ÷ 120 Hz
-
Max SPL: 129 dB
-
Woofer: 12", 2.5" v.c.
Input/Output Section
-
Input connectors: Stereo XLR
-
Output connectors: Stereo XLR
-
Input sensitivity: -2 dBu / + 4 dBu
Processor Section
-
Crossover frequencies: 80-110 Hz Hz
-
Protections: thermal, rms
-
Limiter: soft limiter
-
Controls: Volume, EQ, phase, xover
Amplifier Specifications
-
Total power: 1400 W PEAK
-
Low frequencies: 1400 W PEAK
-
Total power: 700 W RMS
-
Low frequencies: 700 W RMS
-
Cooling: convection
-
Connections: VDE connector
Cabinet
-
Cabinet Material: Baltic birch plywood
-
Hardware: Pole mount
-
Handles: 2 side
-
Pole Mount/Cap: yes
-
Grille: Steel
-
Colour: Black
Physical Specifications
-
Height: 487/19.17 mm/inch
-
Width: 354/13.94 mm/inch
-
Depth: 498/19.61 mm/inch
-
Net Weight: 17.5/38.58 kg/lbs
SALE: $1199.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
