RED PANDA REMOTE 4 Exclusive Real Time 4 Mode Switchboard FX Pedal Controller
RED PANDA
$129.99
(No reviews yet)
Write a Review
RED PANDA
RED PANDA REMOTE 4 Exclusive Real Time 4 Mode Switchboard FX Pedal Controller
REMOTE 4 RED PANDA
Real Time 4 Mode FX Pedal Controller
Remote switch with 4 modes to access presets and pedal functions. Scribble strips above each switch can be labeled with a Sharpie and erased using isopropyl alcohol. Connects to our pedals via a 1/4" TRS cable (included) and the Remote 4 does not require power. Dimensions: 10" x 2.75" x 2.25".
Bitmap 2 Remote switch modes
|
Mode |
Switch |
Function |
|
1 |
A |
Preset 1 (hold to save) |
|
B |
Preset 2 (hold to save) |
|
|
C |
Preset 3 (hold to save) |
|
|
D |
Preset 4 (hold to save) |
|
|
2 |
A |
Next preset |
|
B |
Bypass / on |
|
|
C |
LFO hold |
|
|
D |
Tap |
Context 2 Remote switch modes
|
Mode |
Switch |
Function |
|
1 |
A |
Preset 1 (hold to save) |
|
B |
Preset 2 (hold to save) |
|
|
C |
Preset 3 (hold to save) |
|
|
D |
Preset 4 (hold to save) |
|
|
2 |
A |
Preset footswitch |
|
B |
Right footswitch |
|
|
C |
Reverb hold (latching) |
|
|
D |
Tap tempo |
|
|
3 |
A |
Dry kill (momentary) |
|
B |
Delay kill (momentary) |
|
|
C |
Reverb sustain (momentary) |
|
|
D |
Reverb damping (momentary) |
Particle 2 Remote switch modes
|
Mode |
Switch |
Function |
|
1 |
A |
Preset 1 (hold to save) |
|
B |
Preset 2 (hold to save) |
|
|
C |
Preset 3 (hold to save) |
|
|
D |
Preset 4 (hold to save) |
|
|
2 |
A |
Left footswitch |
|
B |
Right footswitch |
|
|
C |
Preset down |
|
|
D |
Preset up |
Raster 2 Remote switch modes
|
Mode |
Switch |
Function |
|
1 |
A |
Preset 1 (hold to save) |
|
B |
Preset 2 (hold to save) |
|
|
C |
Preset 3 (hold to save) |
|
|
D |
Preset 4 (hold to save) |
|
|
2 |
A |
Left footswitch |
|
B |
Right footswitch |
|
|
C |
Preset down |
|
|
D |
Preset up |

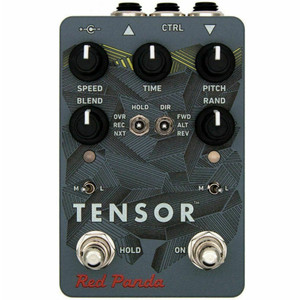

Tensor Remote switch modes
|
Mode |
Switch |
Function |
|
1 |
A |
Preset 1 (hold to save) |
|
B |
Preset 2 (hold to save) |
|
|
C |
Preset 3 (hold to save) |
|
|
D |
Preset 4 (hold to save) |
|
|
2 |
A |
Left footswitch |
|
B |
Right footswitch |
|
|
C |
Preset 1 (hold to save) |
|
|
D |
Preset 2 (hold to save) |
|
|
3 |
A |
Record / Overdub |
|
B |
Play / Stop |
|
|
C |
Play Once |
|
|
D |
Toggle TIME & PITCH (tap) Toggle SPEED (double tap) |
|
|
4 |
A |
Toggle SPEED knob |
|
B |
Toggle TIME knob |
|
|
C |
Toggle PITCH knob |
|
|
D |
Toggle RAND knob |
Tensor Loop Sampler (Remote Mode 3)
Mode 3 is designed to use the Tensor as a loop sampler with live loop manipulation. Switches A-C control loop record, overdub, play, and retrigger functions. Switch 4 toggles between the current knob settings and the default (normal playback settings). For example, you can set SPEED to reverse and PITCH to -1 octave for instant access to reverse and half-speed effects. See the user's manual for complete details.
Configuring the Remote Switch (all Red Panda Pedals):
-
Start with the pedal powered on and nothing plugged into the CTRL port.
-
Hold the right footswitch while plugging in the remote switch. The right LED will blink yellow 3 times to indicate it is in CTRL configuration mode. You can release the right footswitch and begin configuration immediately.
-
Press one of the buttons on the remote switch to select a mode.
-
Hold the right footswitch for 2 seconds to save the configuration. The right LED will blink green to indicate that the configuration has been saved.
