SENNHEISER EW 100 G4-ME2 Evolution Lavalier Wireless Rackmount System with Built-in EQ
SENNHEISEREW100 G4-ME2 SENNHEISER
Evolution Lavalier Wireless System
An ideal choice for moderators and presenters, the ew 100 G4-ME2 from Sennheiser – part of their evolution wireless G4 lineup – provides a robust bodypack transmitter and unobtrusive clip-on ME 2-II omnidirectional microphone with high speech intelligibility for easy, convenient hands-free operation on any stage. This set comes in A1 (470 - 516 MHz) frequency.
Evolution Wireless G4 100 Series
Versatile wireless systems for those who sing, speak, or play instruments, with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

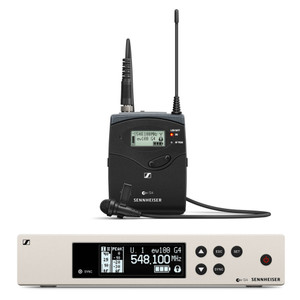

Sennheiser ew 100 G4-ME2 Includes:
-
(1) EM 100 G4 true diversity receiver
-
(1) SK 100 G4 bodypack transmitter
-
(1) ME 2 clip-on microphone (ew 100 G4-ME2 set only)
-
(1) GA 3 rackmount set
-
(1) power supply
-
(2) AA batteries
-
(2) rod antennas
-
(1) RJ 10 cable
-
(1) quick guide
-
(1) safety guide
-
(1) manufacturer declaration sheet
-
(1) frequency supplement sheet
Sennheiser evolution wireless G4 100 Series Features:
-
"Evolving" with you: Flexibility • Safety • Power
-
Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
-
Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II with high speech intelligibility for daily use on stage
-
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Fast frequency allocation for up to 12 receivers via linking functionality
-
Up to 20 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 330ft (100m)
-
High RF output power (up to 30 mW) depending on country regulations
-
Includes a GA 3 rack-mount kit
Sennheiser ew 100 G4-ME2 Specifications:
EM 100 G4 Receiver
-
Frequency range: A1 (470 - 516 MHz)
-
Dimensions: Approx. 190 x 212 x 43mm
-
Compander: Sennheiser HDX
-
THD, total harmonic distortion: = 0.9 %
-
Weight: Approx. 980 g
-
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
-
Signal-to-noise ratio: = 110 dBA
-
Switching bandwidth: up to 42 MHz
-
Peak deviation: ±48 kHz
-
Nominal deviation: ±24 kHz
-
Operating time: Typically 8 h
-
Modulation: Wideband FM
-
Power supply: 12 V DC
-
Antenna connector: 2 BNC sockets
-
Current consumption: 300 mA
-
Adjacent channel rejection: = 65 dB
-
Intermodulation attenuation: = 65 dB
-
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
-
RF sensitivity: < 2.5 µV for 52 dBA eff S/N
Squelch:
-
low: 5 dBµV
-
middle: 15 dBµV
-
high: 25 dBµV
Equalizer:
-
Preset 1: Flat
-
Preset 2: Low Cut (-3 dB at 180 Hz)
-
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
-
Preset 4: High Boost (+6 dB at 10 kHz)
-
Temperature Range: -10° C to +55° C
-
Receiver Principle: True diversity
-
Blocking: = 70 dB
-
SK 100 G4
-
Dimensions: Approx. 82 x 64 x 24mm
-
Compander: Sennheiser HDX
-
THD, total harmonic distortion: = 0.9 %
-
Weight: (incl. batteries) approx. 160 g
-
Signal-to-noise ratio: = 110 dBA
-
RF output power: Max. 30 mW
-
Switching bandwidth: up to 42 MHz
-
Peak deviation: ±48 kHz
-
Nominal deviation: ±24 kHz
-
Operating time: Typically 8 h
-
Modulation: Wideband FM
-
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack (sold separately)
Current consumption:
-
at nominal voltage: typ. 180 mA
-
with transmitter switched off: = 25 µA
-
Input impedance: 40 kOhms, unbalanced / 1 MOhm
-
Max. Input voltage: 3 Veff
-
Powering: 3 V battery / 2.4 V rechargeable battery
-
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response:
-
Mic: 80 – 18,000 Hz
-
Line: 25 – 18,000 Hz
-
Temperature Range: -10° C to +55° C
-
Frequency stability: = ±15 ppm
-
ME 2-II Clip-on Mic
-
Polar Pickup Pattern: Omnidirectional
-
Connector: 3.5 mm jack
-
Frequency response: 50 to 18,000 Hz (ME 2-II)
-
Max. sound pressure level: 130 dB
-
Cable length: approx. 1.60m
-
Transducer principle: pre-polarized condenser microphone
-
Sensitivity in free field, no load (1kHz): 20 mV/Pa
-
Equivalent noise level: 36 dB
SALE: $749.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
