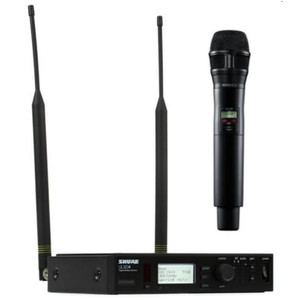

SHURE ULXD4/SM58-G50 Digital Handheld Wireless System

 ULXD4/SM58  SHURE

 Networked Digital Handheld Wireless System

ULXD4-G50

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D® Digital Wireless Systems. With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Features:

• Operates in the G50 Band (470-532MHz)
• Predictive switching diversity
• Ethernet networking provides streamlined setup
• Front-panel gain adjustments provide up to 60dB additional gain
• Support for frequency coordination with the Axient Spectrum Manager

ULXD2/SM58-G50

The Shure ULXD2/SM58 Handheld Transmitter Microphone (G50: 470-534MHz) is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable cardioid SM58 capsule and is set to Shure's G50 frequency band that operates between 470-534MHz.

The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with SBC200 dual docking charger.

Features:

• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout

Specifications:

• Frequency Band: G50: 470-536MHz
• Configuration: Audio Input: Unbalanced
• Max. Input Level (1 kHz at 1% THD): Audio Input: 145 dB SPL (SM58), typical
• Preamplifier (EIN): Audio Input: 120 dBV, A-weighted, typical (System Gain Setting=+20)
• Antenna Type
• RF Output: Integrated Single Band Helical: ULXD2: Occupied Bandwidth
• RF Output: <200 kHz: ULXD2: Modulation Type
• RF Output: Shure Proprietary Digital
• Power: RF Output: 1 mW, 10 mW, 20 mW
• Gain Offset Range: 0 to 21 dB (in 3 dB steps)
• Battery Type: Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V
• Battery Runtime at 10 mW: Shure SB900: >11 hours / Alkaline: 11 hours
• Housing: Machined aluminum
• Type: Electret Condenser
• Frequency Response: 50 Hz to 16 kHz
• Polar Pattern: Cardioid
• Sensitivity: -51 dBV/Pa (2 mV), 1 Pascal=94 dB SPL at 1kHz, at 1 kHz, open circuit voltage
• Maximum SPL: 139 dB at 1 kHz at 1% THD, 1 k Ohms load
• Signal to Noise Ratio: 70.5 dB referenced at 94 dB SPL at 1 kHz (S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted)
• Dynamic Range: 117 dB at 1 kHz at 1 k Ohms load
• Clipping Level: -6 dBV (0.5 V), at 1 kHz at 0.25% THD, 1 k Ohms load
• Self Noise: 22 dB (typical, equivalent SPL; A-weighted)
• Dimensions (L x Dia.): 256 x 51mm / 10.08 x 2.0"
• Weight: 12oz / 340.2g, without batteries

SALE: $1736.00

FREE S&H in continental US (e-mail for international / offshore USA rates)
