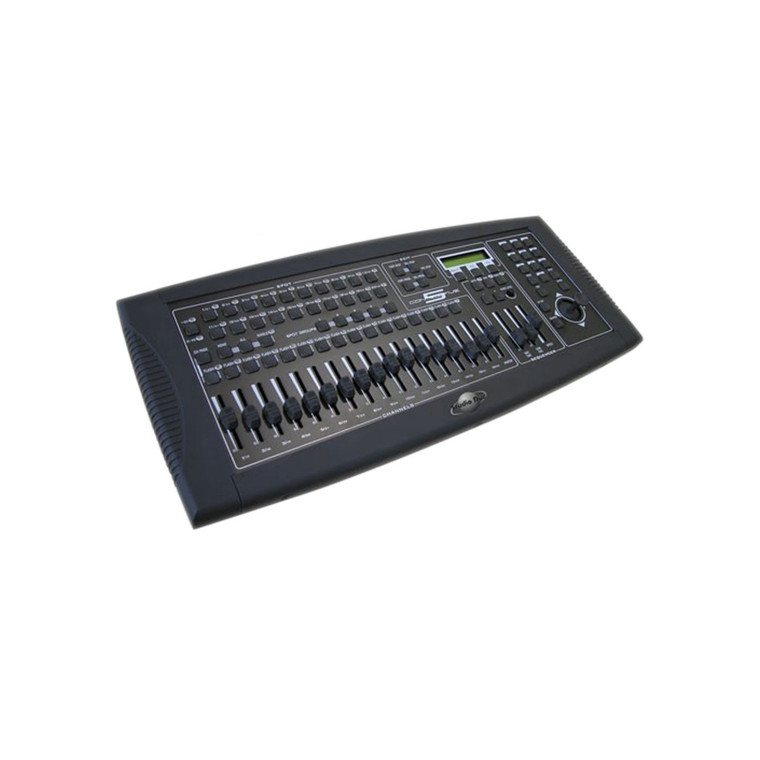

STUDIO DUE CONTROL 5 Feature Rich 16 Channel Rackmountable DMX Controller
STUDIO DUE
$799.99
CONTROL 5 STUDIO DUE
Feature Rich 16 Channel DMX Controller
The STUDIO DUE Control 5 is a feature rich compact controller that competes with professional grade consoles at 1/10 the cost. Click the link below to view manual...
https://www.lightingelstore.com/Control5 Manual.pdf
Specifications:
- Full 512 DMX Channels
- Store up to 4000 Scenes
- The scenes can be stored in 100 different programs
- Up to 40 fixtures can be controlled and five groups of fixtures are available
- Each parameter can be 8/16 bit resolution
- 16 faders for manual control
- The controller can be synchronized with an external device by MIDI IN, DMX IN or MUSIC IN
- An incremental clock is available for precision moving head positioning, with two buttons to invert each axis (x - inversion, y - inversion)
- Internal presets are available to create several automatic shapes in very short time
- Each internal preset can be edited and stored in user memory
- Direct access to main functions by individually buttons
- Advanced functions are available by three buttons with dynamical menus
- For every scene has two timers (WAIT TIME and FADE TIME) to create the fades from a scene to the next one
- An immediate numeric keyboard is used to fast recall programs, steps or assign a numeric value to a parameter
- Example: If you have a 16 bit parameter on a slider, you can assign a precision 16 bit value by the numeric keyboard
- Flash buttons can be used in a dimmer patch or to assign a specific function to the parameter
- Firmware upload via DMX line
- USB connector for DJ work light
- Power failure memory
- Power input DC 12/24V, 800mA min.
- Power supply included
- Rack mount: 4 Rack spaces
- 120V and 230V operation available
- Dimensions: 8.66"x 20.87"x 3.94"
- Weight: 3.5 Kg / 7.72Lbs
SALE: $799.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
