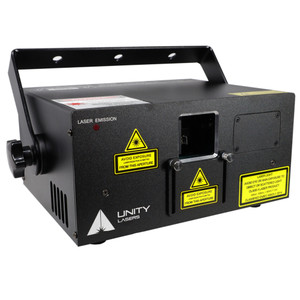

UNITY LASERS RAW 5 Red / Green / Blue Full Color Laser FX

 UNITY RAW 5  PRO-X

 Red / Green / Blue Full Color Laser FX

The Unity RAW 5 is a full color RGB, diode-based laser systems, designed for clients who need impactful aerial beam effects, with the ability to also produce laser graphics, logos and text.

Applications
The RAW Series is perfect for DJs, nightclubs and entertainment venues, where you need an impactful and easy to use laser system, at an economical price point. It is suitable for venues up to 4,500 people in capacity.

Control
Raw Series lasers are incredibly easy to setup and use. And can easily be controlled via ILDA, or via DMX / ArtNET (with Pangolin software). We recommend using the Pangolin FB3QS or FB4 control hardware, with QuickShow software.

What’s in the Box

• RAW 5 Laser Projector
• 10M ILDA Cable
• E-Stop Safety System and E-Stop Cables
• Safety Interlocks
• Safety Keys

Features:

• Type: full-colour, semiconductor diode laser system
• Guaranteed optical output: >5000mw
• Suitable for: indoor/small outdoor laser shows and laser graphic displays
• Control signal: ILDA
• Scanning system: 25kpps @ 8°
• Safety: fully complies with the latest EN 60825-1, and FDA regulations
• Weight: 7kg
• R | G | B [mW]: 1300 | 1500 | 2200
• Beam size [mm]: 5 x 3
• Beam divergence: <1.1mrad [full angle]
• Modulation: analog, up to 50kHz
• Power requirements: 100-230V/50Hz
• Consumption: max. 100W
• Operation temperature: 10-40 °C
• Ingress protection rating: IP20

System Features
All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation.

Laser Safety Features
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.

SALE: $2499.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
