WARM AUDIO WA-47 Large Diaphragm Tube Condenser Studio Microphone

 WA-47  WARM AUDIO

 Large Diaphragm Tube Condenser Microphone

Based upon the classic ‘47 that has been used on countless hit records for the last 50+ years, Warm Audio's WA-47 is a large diaphragm, large condenser, all vacuum tube, transformer balanced, multi-pattern (9) microphone. It's designed to deliver professional quality sound in pro studios, home studios, live performance, and broadcast use, providing top sound quality on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and a wide array of other sources. The classic ‘47 became extremely popular in the 1960’s and is now considered one of the greatest microphones ever made. It's still widely in use today in professional recording studios but has become extremely rare and expensive to acquire. The WA-47 answers the need for that classic sound, but much more within reach of a more extensive user base.

Warm Audio uses quality components to ensure they're providing the best sounding product possible. The WA-47 is packed with top end components that are carefully sourced from many of the world's top pro audio component suppliers.

True '47 Style Capsule
Utilizing a custom adaptation of the vintage k47 style capsule that was used in the classic ‘47 microphone, the WA-47 is engineered with the same hole pattern and frequency response. Every Warm Audio capsule is built in the same small assembly house, in a clean-room environment, then packaged in its own protective case till the moment it's loaded into the microphone. Each capsule is visually inspected and electrically tested for quality.

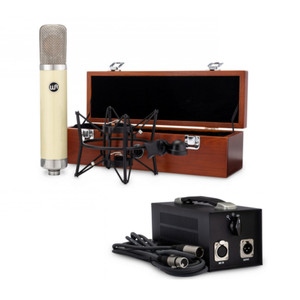

Warm Audio WA-47 Includes:

• WA-47 Microphone

• Wood box

• PSU

• Shockmount

• Gotham 7-pin GAC-7 cable

• IEC power cable

Warm Audio WA-47 Features/Specifications:

• Custom true '47 capsule reproduction (k47 style) - Model# WA-47-B-80v

• Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6microns NOS mylar (PET film)

• TAB-Funkenwerk (AMI) USA output transformer

• JJ Slovak 5751 vacuum tube

• Gotham 5 meter GAC-7, 7-pin tube microphone cable

• Wima, Solen French, and Polystyrene capacitors

• Polar Patterns: 9 patterns - Cardioid, Omni, figure-of-eight + 6 mixed patterns

• Self-noise: 11dBA

• Dynamic range: 130 dBA

• Maximum SPL: 140 dB  (<0.5% THD)

• Frequency Range: 20 Hz ~ 20 kHz

• Output Impedance: 200 ohms

• Rated Load Impedance: =2 kOhms

• S/N Ratio: 82 dBA

• Equivalent Noise: 10 dBA (IEC651)

• External IEC grounded PSU

• Total Weight: 9 lbs.

• Mic Dimensions (Ø x L): 90 x 254mm

SALE: $949.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
