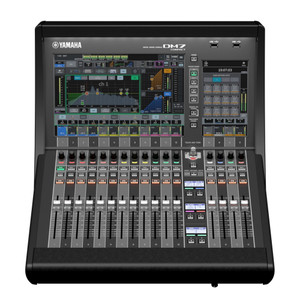

YAMAHA DM7 120 Channel Professional Dante-Enabled Digital AI Assist Audio Console

 DM7  YAMAHA

 120 Channel Digital Audio Console


The DM7 is a cutting-edge, Dante-enabled 120-channel dual bay digital console designed for professional use. The DM7 is capable of 96kHz sample rates, boasts 28 faders, and provides dual 12" high-resolution multi-touch screens supplemented by an additional 7" screen, ensuring optimal visual feedback and intuitive control. It incorporates an 18x18 audio interface, seamlessly integrating with Yamaha's VST RACK to expand the console's versatility.

Featuring a convenient DAW remote function, an internal dual power supply, and AI assist functions, the DM7 stands out with a unique combination of advanced capabilities, an ideal choice for a diverse range of professional applications, including live sound, theatrical productions, broadcast environments, and corporate AV.

Includes:

• DM7 120-Channel Digital Mixing Console

• Owner's Manual

• (2) AC Power Cord

• Dust Cover

• Steinberg Nuendo Live (DAW Software)

• Dante Virtual Soundcard Token Leaflet

Features:

• Renowned Yamaha Sound with 96kHz sample rate

• Screens: 2 x High-Res Multi-touch 12” + 1 x High-Res 7”

• Faders: 12+ 12 + 4

• Mixable Channels: 120 inputs

• Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue

• Analog i/o: 32 x 16

• Digital: 2 x AES In/Out

• PY Slot i/o: 64x64 @ 96k

• Dante: 144 x 144 @ 96k

• USB-C: 18x18 Audio Interface – Works with VST RACK

• Time Code In

• Internal Dual Power Supply

• DAW Remote Function

• Split mode

• First-of-its-kind AI Assist Functions

Specifications:

• Mixing Capacity: 120 Inputs, 48 MIX + 12 Matrix + 2 Stereo

• Operating Temperature Range: Min: 0°C, Max: 40°C

• Storage Temperature Range: Min: −20°C, Max: 60°C

Sampling Frequency

• External Clock Frequency: 48 kHz / 96 kHz ±200 ppm

• Internal Clock Frequency: 48 kHz / 96 kHz

Signal Delay: Less than 1.5 ms, Input to Omni Out @Fs=96 kHz

• Screen: 12.1" multi-touch screen × 2, 7" multi-touch screen × 1

• Fader: 3.94" touch-sensitive motorized fader × 28

• Power Requirements: 100-240 V, 50/60 Hz

• Power Consumption: 240 W

• Dimensions (W x H x D): 31.2" × 12.75" × 22.20"

• Weight: 50.7 lbs

NC Value

• Fan Speed LOW: NC=15

• Fan Speed HIGH: NC=25

Software

• DM7 Editor

• DM7 StageMix

• Console File Converter

• MonitorMix

• ProVisionaire Control/Touch

SALE: $29999.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
